NK Series bearing

EISIAU PRYNU'R EITEM HON YN AWR?

Byddwn yn eich dyfynnu ar unwaith gyda sampl am ddim a danfoniad byrraf.

Anfon Ymholiad

Hot tags: China nk series bearing suppliers, nk series bearing factory, nk series bearing price

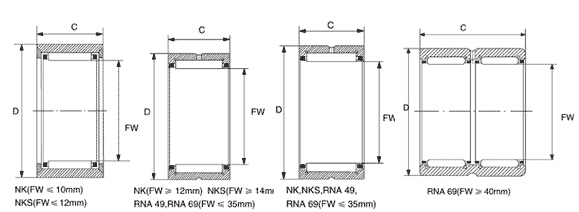

dewis	Ymholiad	Dynodiad Gan gadw		Shaft Diameter（mm）	Pwysau (Kg)	Boundary Dimensions(mm)			Basic Load Rating(N)		Limiting Speed(rpm)
dewis	Ymholiad	Current Code	Original Code	Shaft Diameter（mm）	Pwysau (Kg)	Fw	D	C	Dynamig	Statig	Olew
		NK5/10TN bearing		5	2.9	5	10	10	2100	1400	36780
		NK05/08 bearing		5		5	10	8
		NK05/10TN-OH bearing		5		5	10	12	2350	1920	39000
		NK05/12TN bearing		5	3.7	5	10	12	3000	2650	39000
		NK06/10 bearing		6		6	12	10	2600	2200	37000
		NK06/10TN bearing		6		6	12	10	2600	2200	37000
		NK06/12TN bearing		6	5.7	6	12	12	3350	3150	37000
		NK07/10 bearing		7	6.9	7	14	10	2850	2650	34000
		NK07/12 bearing		7	8.2	7	14	12	3650	3600	34000
		NK8/12TN bearing		8	8.3	8	15	12	3950	4100	32000
		NK08/12 bearing		8	8.7	8	15	12	3950	4100	32000
		NK08/16 bearing		8	12	8	15	16	5100	5800	32000
		NK08/16TN bearing		8		8	15	16	5100	5800	32000
		NK09/12 bearing		9	10.3	9	16	12
		NK10/12TN bearing	462409K	10	10	10	17	12	4750	5300	29000
		NK10/10 bearing		10		10	17	10
		NK10/12 bearing		10		10	17	12
		NK10/16 bearing		10		10	17	16	6200	7800	29000
		NK10/16TN bearing		10		10	17	16	6200	7800	29000
		NKS10 bearing		10		10	19	13	5800	6000	29000
		NK12/12TN bearing	644097	12	11.8	12	19	12	6000	6400	27000
		NK12/16 bearing		12	16.8	12	19	16	8200	9800	27000
		NK14/16 bearing	4624900K	14	20.8	14	22	16	10100	11500	25000
		NKS14 bearing		14	27	14	25	16	1400	13800	24000
		NK14/12 bearing		14		14	22	12
		NK14/20 bearing		14		14	22	20	12800	15600	25000
		NK15/12 bearing	644800K	15	18.5	15	23	12	8600	11000	21000
		NK15/16 bearing		15	21.8	15	23	16	10700	12700	24000
		NK15/20 bearing		15	26.7	15	23	20	13600	17200	24000
		NK152312 bearing		15		15	23	12
Blaenorol12 3 4 5 Nesaf
