Single-row Four Point Contact Ball Slewing Bearing (External gear type)

EISIAU PRYNU'R EITEM HON YN AWR?

Byddwn yn eich dyfynnu ar unwaith gyda sampl am ddim a danfoniad byrraf.

Anfon Ymholiad

Hot tags: China single-row four point contact ball slewing bearing (external gear type) suppliers, single-row four point contact ball slewing bearing (external gear type) factory, single-row four point contact ball slewing bearing (external gear type) price

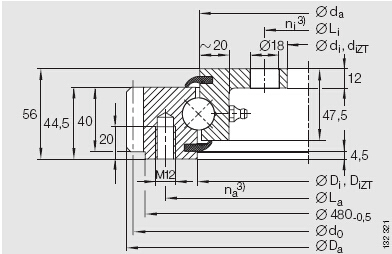

Disgrifiad A diamedrau Technegol

dewis	Ymholiad	Designations	Boundary Dimension （mm）			Bolt Hole Diameter （mm）						Pwysau
dewis	Ymholiad	Designations	Da	Di	H	La	Li	na3)	ni3)	m	z	（Kg）
		E.505.20.00.C bearing	503.3	304	56	455	332	10	12	5	99	29.5
		E.650.20.00.C bearing	640	434	56	585	462	14	14	6	105	41.5
		E.750.20.00.C bearing	742	534	56	685	562	16	16	6	122	48.5
		E.850.20.00.C bearing	838	634	56	785	662	18	16	6	138	54.5
		E.950.20.00.C bearing	950	734	56	885	762	18	18	8	117	65.5
		E.1050.20.00.C bearing	1046	834	56	985	862	20	20	8	129	71.5
		E.1200.20.00.C bearing	1198	984	56	1135	1012	22	20	8	148	83.5
